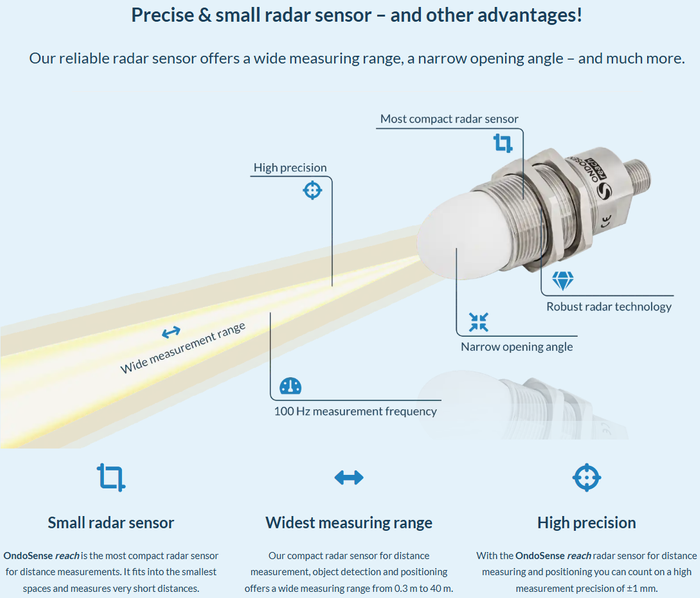

OndoSense reach
Radar frequency
122 GHz
Opening angle
±3 ° / ±8 °
Measurement range
0.3 – 40 m
Measurement rate
up to 100 Hz
Output rate
up to 10 ms / 100 Hz
Repeatability
±1 mm
Communication interface
RS485; other interfaces via gateway
Switching output
3x push-pull (PNP/NPN)
Analog output
Current loop (4 – 20 mA)
Protection class
IP67

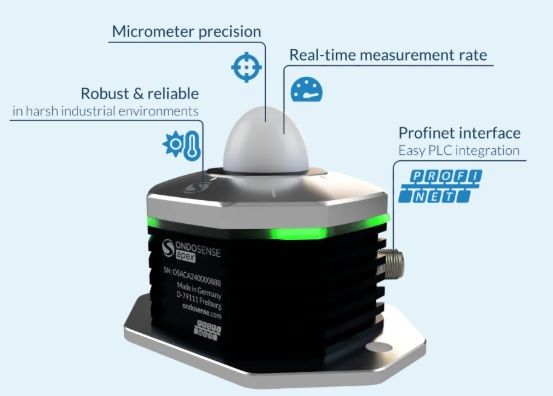

OndoSense apex
±1,5 °
0.1 – 6 m (standard range)0.3 – 40 m (long range)
500 Hz
Linearity
up to ±300 µm
±100 µm (standard)
±1 µm (high precision modus)
Profinet RT
